Sealer Price Automatic High Frequency Hospital Bag Tube Sealer Mobile Blood Collection Bag Tube Sealing Machine

Sealer Price Automatic High Frequency Hospital Bag Tube Sealer Mobile Blood Collection Bag Tube Sealing Machine

نام تجاری:	Cenlee
شماره مدل:	CL-TP1/TS1
مقدار تولیدی:	1 مجموعه
قیمت:	865~1076USD PER UNIT
شرایط پرداخت:	Western Union، L/C، D/P، T/T
توانایی عرضه:	5000 مجموعه در ماه

جزئیات اطلاعات

توضیحات محصول

جزئیات اطلاعات

محل منبع:

گواهی:

ISO9001/13485，CE

CL-TP1/TS1

درزگیر لوله

نوع آب بندی:

خودکار

درخواست:

PE یا PVC ، قطر بیرونی 2 میلی متر-6 میلی متر ، ضخامت دیوار

ابعاد ((L*W*H):

204mmx145mmx5mm

حداکثر عرض مهر و موم:

6 میلی متر

زمان آب بندی:

1-1.5s

قدرت:

کار: 150W / آماده به کار: 3W

اندازه بسته بندی:

470mmx260mmx280mm

جزئیات بسته بندی:

کارتن

قابلیت ارائه:

5000 مجموعه در ماه

برجسته کردن:

Hospital Bag Tube Sealing Machine,Mobile Blood Collection Tube Sealing Machine

Mobile Blood Collection Tube Sealing Machine

توضیحات محصول

Medical Sealer Blood Bag Tube Closure Device Blood Bank Blood Bag Tube Sealer

Product Description:

The automatic heat sealer is used for sealing and heat sealing of medical PVC blood collection bag catheters.
It is mainly applicable to the blood transfusion department, blood collection department and component department of the hospital at all levels, blood bank and medical research and so on. Working Principle: The high-frequency electrode on the heat-sealing head conducts high-frequency induction heating to the PVC pipeline, so that the PVC pipeline reaches a molten state (the PVC material conduit is polarized under a high-frequency electric field), and the heat-sealing electrode presses the molten part. A heat seal is completed after the time.

Main Features:
1. Adopt transistor high frequency generator. Its radiation is weak.
2. The circuit is mature and stable. Safe and reliable. Long service life.
3. The heat sealing process is fully automated. There is no voltage adjustment and time adjustment.
4. Humanized design with small size, light weight, easy movement and simple operation.
5. The advantages of rapid, accurate and stable heat sealing are suitable for heat sealing of mobile blood collection tubes.
Operation

Instruction:

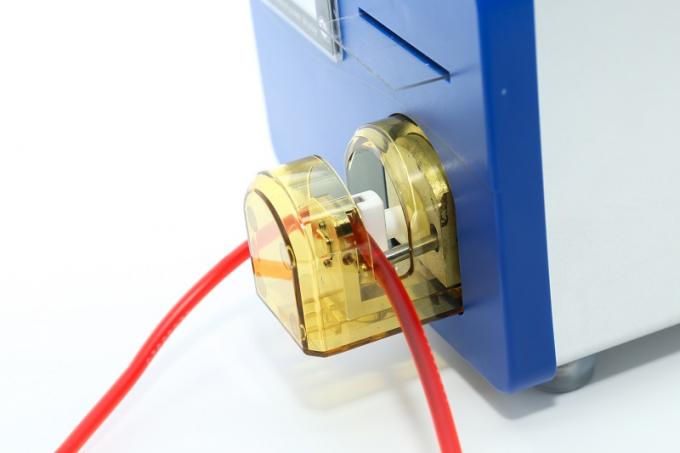

1. Pinch the two sides of the pipeline to be heat-sealed with both hands, and put the pipeline into the heat-sealing tank.
2. Use a little more force with your right hand to trigger the probe/switch in the heat seal slot.
3. At this time, the heat sealing head slowly pulls in, which is the working state.
4. About 2-6 seconds, the heat sealing is completed at this time, and it stops automatically.
5. After the heat sealing is completed, take out the heat sealing hose, cut the hose along the heat sealing gap or pull the hose slightly with both hands to separate the two sections.

Specification

model	CL-TP1	CL-TS1
Sealing Time	1-2.5S	1-2.5S
Power supply	AC single phase, 110V or 220V±10V, 50Hz/60Hz, 5A	AC single phase, 110V or 220V±10V, 50Hz/60Hz, 5A
Sealing Type	Automatic	Automatic
Power	working: 150W / standby: 3W	working: 150W / standby: 3W
Applicable materials	PE or PVC, outer diameter 2mm--6mm, wall thickness ≤1.5mm	PE or PVC, outer diameter 2mm--6mm, wall thickness ≤1.5mm
Dimensions	355mmx185mmx175mm	355mmx185mmx175mm
key selling points	Easy to Operate, Low Noise Level, Long Service Life	Easy to Operate, Low Noise Level, Long Service Life
RF Power	30w	30W
Heat sealing quantity	It takes 2 hours to fully charge and can be heat sealed 350-700 times (depending on the ambient temperature), with a working time of>3 hours
Nominal voltage/battery rated capacity	4AH
Charging limit voltage	29.2V

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

FAQ

Q: Are you manufacturer or trader?
A: CenLee has been specialized in manufacturing laboratory centrifuges for more than 40 years.

Q: Do you accept small orders?
A: Yes, our MOQ is one set laboratory centrifuge.

Q: What's the delivery time of high speed centrifuge?
A: 1~7 days after payment received. (According to the order,maybe longer.)

Q: Is there any discount on the price?
A: Definitely we have, As professional high speed laboratory centrifuge manufacturer in China. We have very competitive and
favorable price in this market. because we are factory and we run big volume. More quantity, more discount.

Q: Can you accept customer's designs?
A: Yes, We have technical support and satisfactory training. ODM/OEM are available.

Q: Can you make customer's design(logo) on the package?
A: Yes, OEM/ODM package is acceptable.

Q: Do you have after-sales sevice?
A: Yes,we have. We can offer you operation vedio of high speed laboratory centrifuge.
